New style wholesale led track lights modern 12w / 20w / 30w linear track lightack lighting
-
t gallery track ligh
-
90 20W led track ligAvailable watt: 10w, 2*115w,2*15w
20w,2*20w
30w,2*30w
40w,2*40w
50w,2*50w
1.Product features
| LED Power: | 20W |
| Lamp Consumption: | 22W |
| Output: | 1200-1400lm |
| Input voltage: | 100-277v AC, 50-60hz |
| Beam Angle: | 15°/30°/60° |
| Color Rendering Index: | >82 |
| Working Temperature: | -40°C-45°C |
| Storage Temperature: | -25°C-65°C |
| Color of shell: | white, black, aluminum |
| Track holder: | 2-wires, 3-wires, 4-wires |
| Life span: | 50,000+hrs |
| Certificate: | CE/ROHS/SASO/SAA/UL/TUV/PSE/GS ERP test report |
| Warranty: | 5 years |
2.Chip(Total 8 pcs) parameter
| CHip: | SMD3030 |
| Chip brand: | Cree/Bridgelu/Citizen/Osram |
| Output: | 1200-1400lm |
| Chip quantity: | 8pcs |
| CRI: | 82-95 |
| Voltage: | 27-40VDC |
| Current: | 700mA |
3.Driver parameter
| Driver brand | Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC |
| Input: | 100-277V AC |
| Output: | 18-30V DC, 700mA |
| Power Factor: | 0.9-0.99 |
| Power efficiency: | 86% |
| Certificate: | CE/TUV/UL/CQC/SAA/PSE/CB |
| Dimmable: | TRIAC /DALI /WI-FI/0-10V available |
| Part No: | Color | CCT | Output Ra80 | Output Ra90 |
| EW-STL20WLA-WW | Warm White | 2900-3200K | 1100-1200lm | 1000-1100lm |
| EW-STL20WLA-NW | Natural white | 3900-4200K | 1200-1300lm | 1100-1200lm |
| EW-STL20WLA-CW | Cool White | 5900-6200K | 1300-1400lm | 1200-1300lm |
EWIN Quality Control
1. 100% testing before aging .
2. Aging for no less than 24hours, and the switch is off-on aucomatically every 2minutes during aging procedure.
3. 100% testing by safe tester (with 3700V high voltage) before packing.
4. Except normal CE, RoHS, FCC certificates for the finished products, we can provide IES files and ERP reports.
EWIN Services and terms
Warranty: 3years , free replacement.
Lead time: 7-10 days.
Payment: TT, Western Union, Paypal, Money Gram.
Transportation: DHL, UPS, FedEx, Air, Sea, etc.
EWIN focus on COB LED Commercial Lighting since from 2010, and we make COB led lamps only, we belive high quality & high efficiency based on profession.
EWIN wish our lamps would light up your life like the sun.
|
|

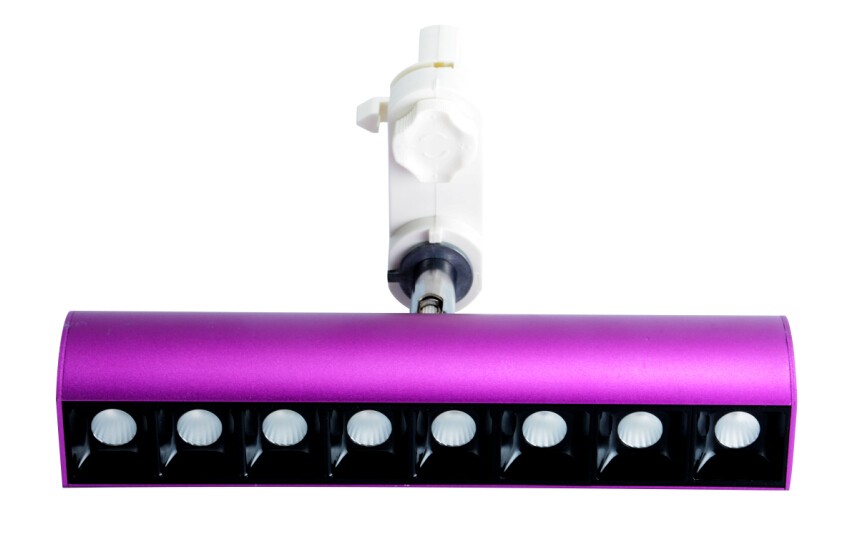

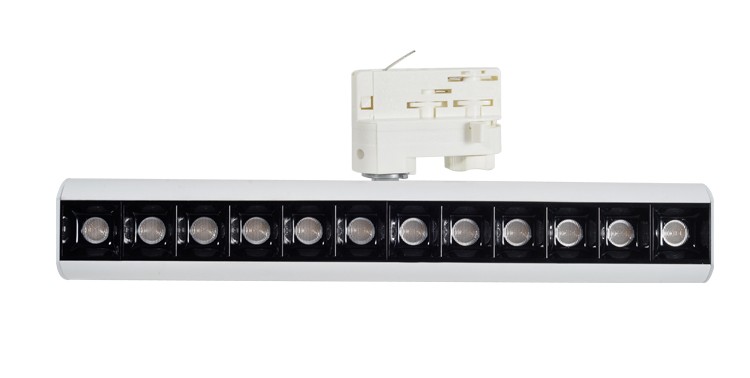

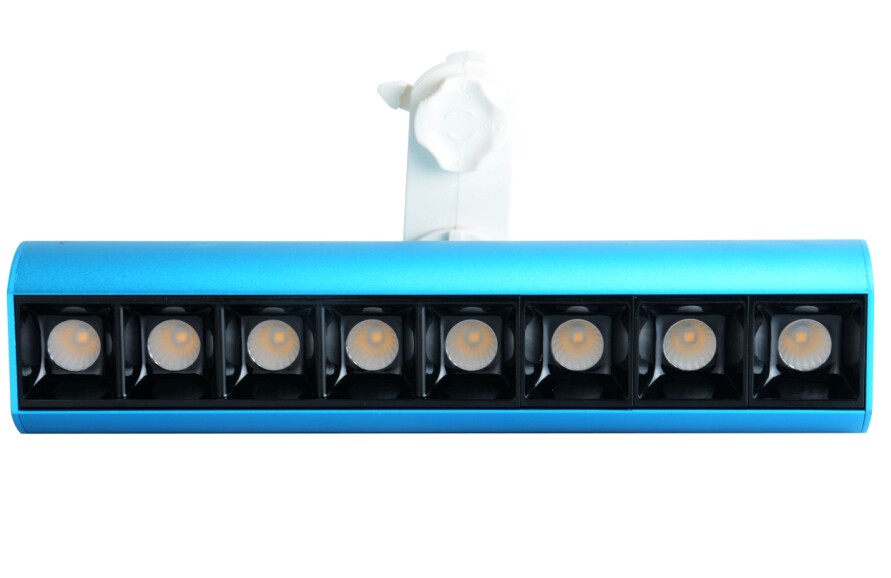

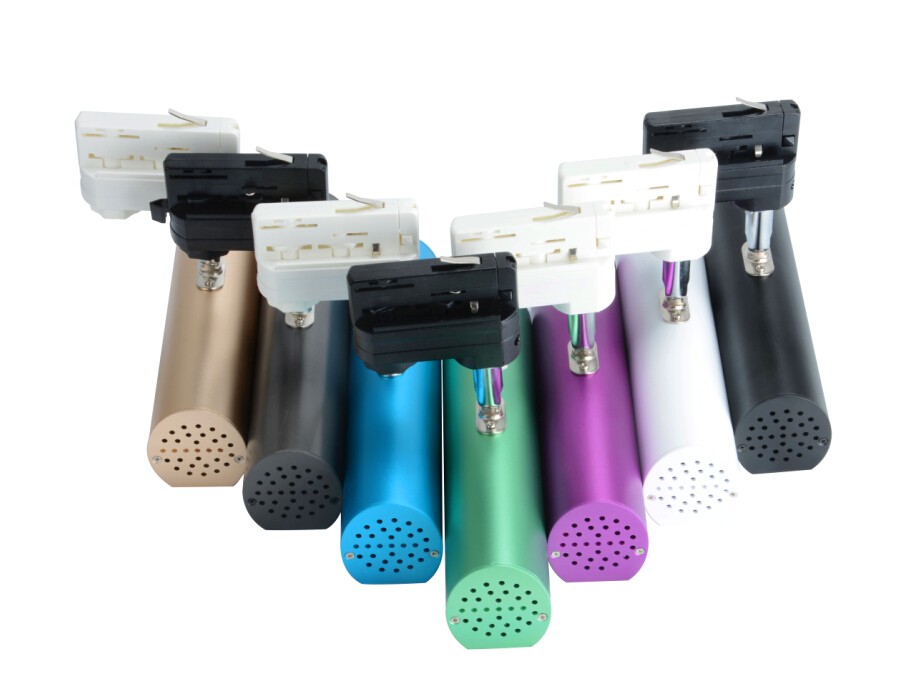

New style wholesale led track lights modern 12w / 20w / 30w linear track light Images
|
